What Is an API?

An API (Application Programming Interface) is a set of defined rules, protocols, and mechanisms that allow one software application to communicate, exchange data, and execute tasks with another application.

Think of an API as a waiter in a restaurant:

• The Customer (Frontend / Client): Looks at the menu and makes a request.

• The Waiter (The API): Takes the request, delivers it to the kitchen, and brings back the prepared food.

• The Kitchen (Backend / Database): Processes the request, prepares the data, and returns the output.

Why Business Analysts Must Understand APIs

While developers write the actual code for endpoints, a Business Analyst defines WHAT data needs to be transferred, WHEN system calls are triggered, and HOW validation rules are enforced.

Understanding APIs enables a BA to:

• Document multi-system integration requirements accurately in BRDs and FRDs.

• Map data flows between microservices and enterprise core engines.

• Define error handling rules and user-facing messages for failed technical calls.

• Facilitate productive sprint planning sessions with technical architects and software engineers.

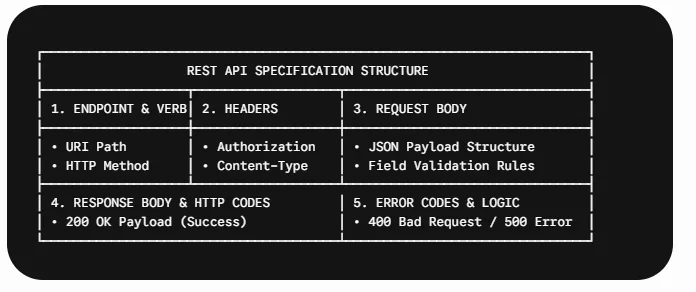

The Core Components of a REST API Specification

When documenting a REST API specification, a Business Analyst must detail five essential components:

1. HTTP Endpoint & Method (Verb)

The URI path specifies where the request goes, while the HTTP verb indicates the action being performed:

• GET: Retrieves data without modifying the server state (e.g., GET /api/v1/customers/{customerId}).

• POST: Creates a brand-new record (e.g., POST /api/v1/accounts).

• PUT / PATCH: Updates an existing record.

• DELETE: Removes a record from the database.

2. Request Headers & Authentication

Defines critical metadata and security tokens sent along with the payload (e.g., Authorization: Bearer <token>, Content-Type: application/json).

3. Request Payload (JSON Structure & Data Dictionary)

Specifies the exact data attributes sent to the API. The BA must document data types, mandatory vs. optional flags, and validation constraints.

4. Response Payload & HTTP Status Codes

Specifies the JSON payload returned by the server along with standard HTTP response codes:

• 200 OK / 201 Created: The request succeeded.

• 400 Bad Request: Validation failure (e.g., missing mandatory parameters).

• 401 Unauthorized / 403 Forbidden: Missing or invalid security credentials.

• 404 Not Found: The requested resource does not exist.

• 500 Internal Server Error: The backend server encountered an unhandled exception.

Practical API Requirement Example for Business Analysts

Here is how a Business Analyst captures functional details and data mappings for a customer onboarding API:

Functional Context

• Feature: New Digital Account Onboarding

• Endpoint: POST /api/v1/customers

• Trigger: Customer clicks “Submit” on the onboarding form.

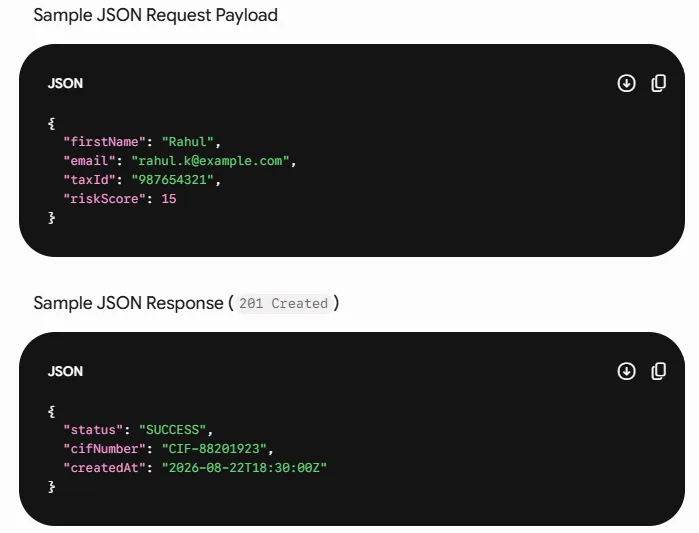

Data Mapping Dictionary (Request Payload)

Specifying Error Handling & Exception Flows

A Business Analyst must specify predictable behavior when things go wrong:

• Functional Requirement (FR-API-01): “If the request payload lacks a mandatory parameter, the API shall return HTTP status 400 Bad Request with an explicit error array.”

• Business Rule (BR-API-02): “When the endpoint returns a 401 Unauthorized status, the frontend application shall suppress retry loops and automatically redirect the user to the log-in page.”

Here are some key points to understand about APIs:

1. Abstraction: An API abstracts the underlying implementation and only exposes objects or actions the developer needs. This allows the programmer to interact with a system or platform without knowing the internal details of that system.

2. Types of APIs:

   • Web APIs: These allow interaction over the web, typically using HTTP/HTTPS. Examples include REST, SOAP, and GraphQL APIs.
   • Library & Framework APIs: These provide pre-defined functions and routines to perform specific tasks, like the JavaAPI.
   • Operating System APIs: These allow applications to make requests to the operating system, such as file operations or network requests.
   • Database APIs: These allow communication between an application and a database, such as JDBC for Java.

3. Benefits:

   • Interoperability: APIs enable different software systems, which may be built using different technologies, to work together.
   • Efficiency: Developers can leverage pre-existing components and services instead of building everything from scratch.
   • Standardization: By defining a standard interface, it’s easier to ensure that different software components interact correctly.
4. API Endpoints: In the context of web APIs, an endpoint refers to a specific URL where an API can be accessed and perform some action (e.g., retrieve, create, update, or delete data).
5. Security: Proper care needs to be taken when developing and consuming APIs to ensure that sensitive data is protected, and malicious attacks are prevented. Common practices include using tokens, OAuth, and rate limiting.
6. Versioning: As software evolves, its API might need changes that could break existing clients. To handle this, developers often use versioning to ensure backward compatibility.

• In the modern world of software, APIs are instrumental in building scalable and flexible systems, enabling integrations across diverse platforms and technologies.
